Applies to: Lasernet Core 11
The window where you edit your XML Transformer forms is split in two: the left part shows the input file data (the original data received from the administrative system), and the right part shows the XML that results from the XML Transformer’s actions.
The XML format is represented in a tree structure with nodes identifying the variables. These also contain the actual data. You can switch the XML input view between Full XML, XML without end tags, and XML as a table through the View menu.

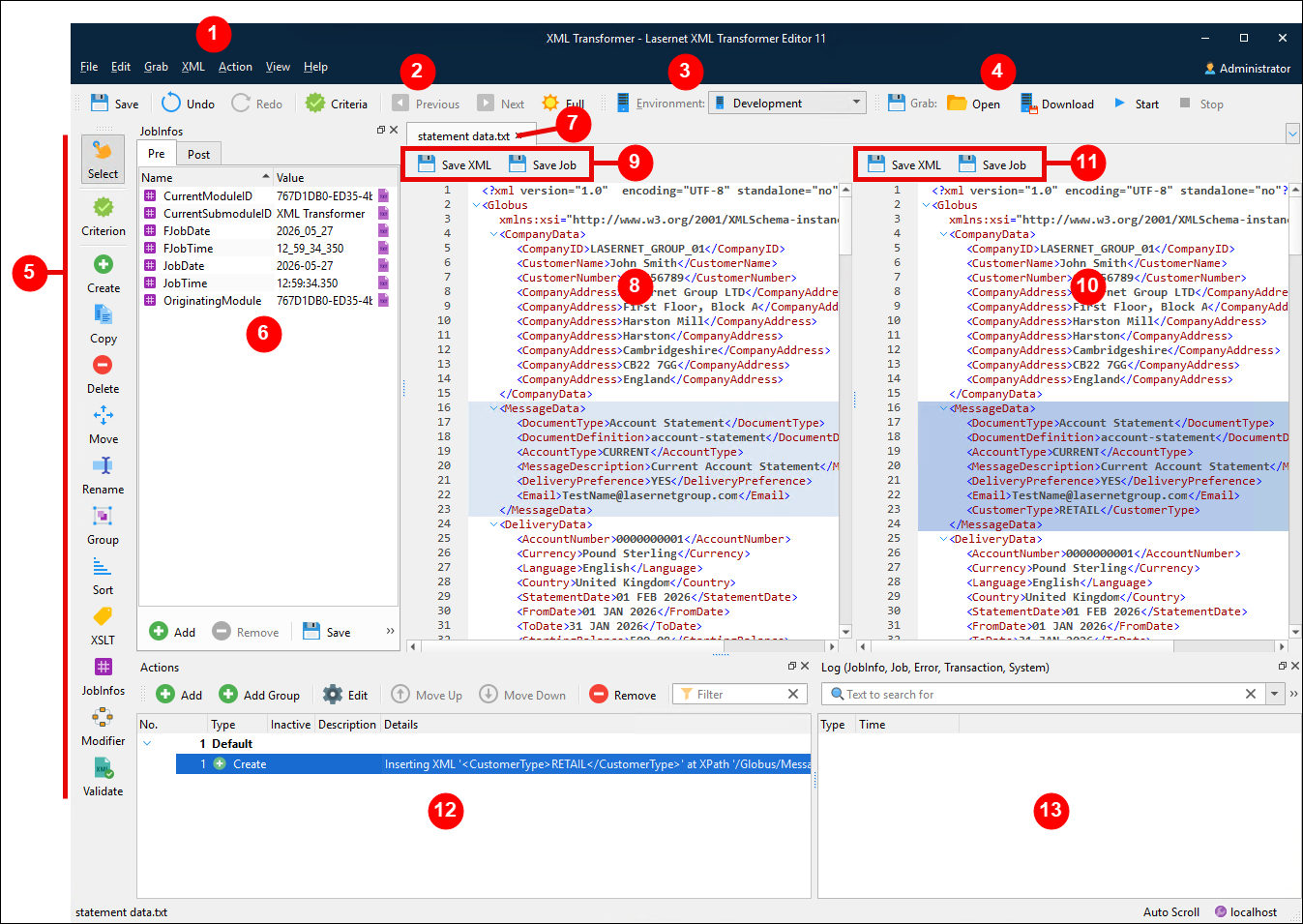

See the table below to learn more details about the user interface elements:
Element | Description | |
1 | Menu bar | Contains the following commands:
Use the menu bar to access the main functions of the XML Transformer Editor. |
2 | Toolbar | Provides easy access to commands such as Save, Undo/Redo, Criteria, Previous, Next, and Full. |
3 | Environment bar | Select the environment to retrieve the JobInfos defined for that environment (in the Lasernet Config Server). |
4 | Grab bar | Contains the following commands for grab functionality:
|
5 | Developer toolbar | Enables you to easily define criteria and apply actions to the XML file. The Select tool allows you to turn off the activated action. |
6 | Pre / Post JobInfos | Names and values of JobInfos before actions are run (Pre tab) and after (Post tab). |
7 | Grab file tabs | Each input document is opened in a separate tab. |
8 | XML input view | The input XML before XML Transformer applies actions to it. |
9 | Save XML (input side) Save Job (input side) | These buttons save data from the left-side pane (the input side). This pane contains the XML before the XML Transformer applies actions to it. Save XML saves an Save Job saves a Lasernet job file (
|
10 | XML output view | The XML after XML Transformer applies actions to it. |
11 | Save XML (output side) Save Job (output side) | These buttons save data from the right-side pane (the output side). This pane contains the XML after the XML Transformer applies actions to it. Save XML saves an Save Job saves a Lasernet job file (
|
12 | Actions panel | Enables you to add new actions or manage the list of existing actions. The right-click menu in this panel contains the following actions. The toolbar contains buttons for some of them:
Use the Filter box in the upper-right corner to filter the actions list on the text that you enter. |
13 | Log panel | Displays XML Transformer log messages. Each log message has a type. Use the Text to search for box to find log messages that contain the text that you enter. |
