Job to XML Modifier

Applies to: Lasernet Core 10

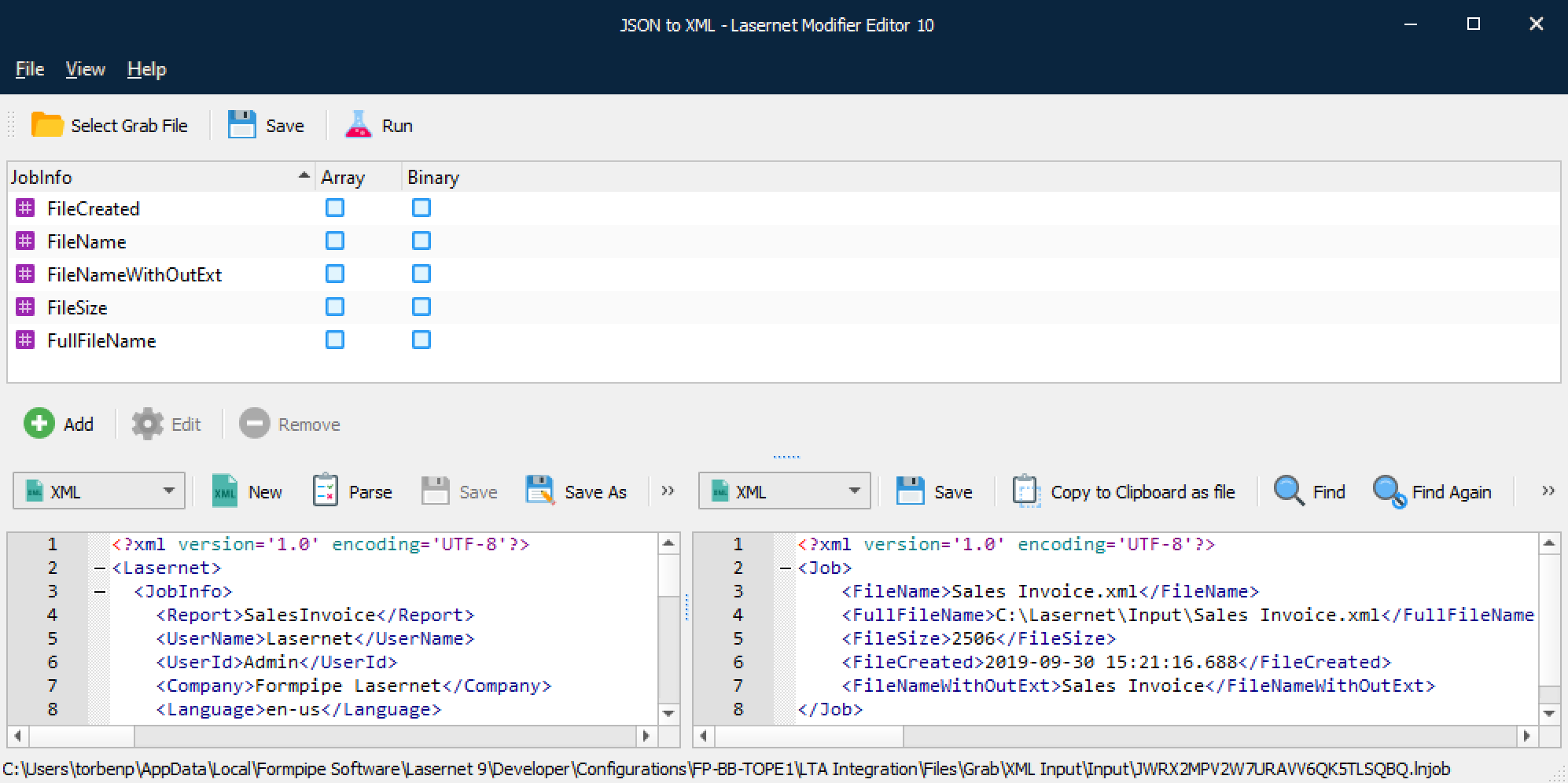

Converts a list of selected JobInfos to an XML structure. The values of the JobInfos are retrieved from the job being processed.

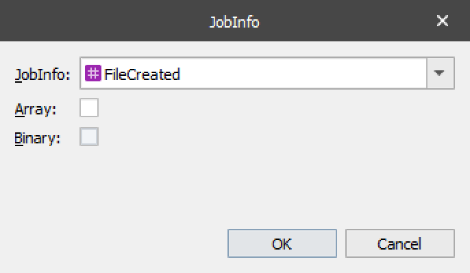

Click Add to insert a JobInfo you want to include in the XML result. Click Edit or Remove to maintain JobInfos and values already added to the list.

JobInfo Name of JobInfo and Value to be included in the XML result.

Array

Activate if the JobInfo contains an array of values and all values are required in the XML result. The values in the array of a JobInfo are added as children in an element named Value:

<JobInfoName>
  <Value>1</Value>
  <Value>2</Value>
</JobInfoName>

Binary Activate if the value of the JobInfo represents a binary value. The value is encoded and included as a base64 string.
