Outlook Mail Input

Applies to: Lasernet Core 11

The Outlook Mail module integrates directly with Office 365 to retrieve emails. It uses the Microsoft Graph API to access Exchange Online data.

To set up the module, follow this process:

Configure Authentication

Note
Lasernet Core 11.2 and later do not support user authentication.

Refer to the information for the version of Lasernet Core that you are using.

Lasernet Core 11.0 and 11.1

Select Authentication Type

Select which type of authentication the module will use:

User: The module authenticates as a user.
Application: The module authenticates as an application registered in Entra ID.

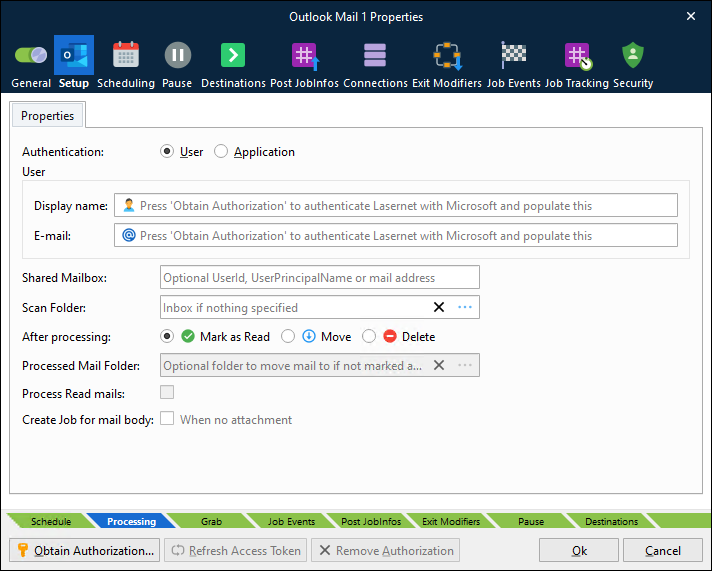

The Setup tab of an Outlook Mail input module.

Authenticate as a User

Set Authentication to User, then click Obtain Authorization to access the account for your organization and to autofill the Display name and E-mail fields.

The Outlook Mail module will obtain authorization to:

Maintain access to data to which you have granted access.
Configure individual permission to send mail on behalf of yourself.
Configure API permission to send mail on behalf of others.
Sign you in and read your profile.

The Remove Authorization button deletes the obtained authorization.

Note
Obtain Authorization and Remove Authorization are available only when you select User authentication.

User Authentication Properties

Display name	Display name for the account (click Obtain Authorization to autofill this field).
E-mail	E-mail address for the account (click Obtain Authorization to autofill this field).
Shared Mailbox	To use a shared mailbox, insert a UserID, UserPrincipalName or an email address.

Authenticate as an Application

Application authentication for Outlook Mail communication requires that:

Lasernet Core is registered as an app by an Entra ID admin.
In Entra ID, the app has the Mail.ReadWrite permission.
The Entra ID admin must provide a ClientID and Client Secret for the module to use to sign in.

Important
Before implementing application authentication for this module, see Understand the Security Implications of Application Authentication for Outlook Mail, OneDrive, and SharePoint Modules. Although that article primarily applies to Lasernet Core 11.2 and later, the Delegated vs. Application Authentication, Permissions Required by Each Module, and Reducing the Scope of Access sections also apply to Lasernet Core 11.0 and 11.1.

Set Authentication to Application, enter Client ID and Client secret (and any other necessary settings), then click Refresh Access Token.

Note
If the client ID and client secret change in the future, repeat the step above and then commit and deploy the Lasernet Core configuration. Doing this ensures that the module remains authenticated.
At any time, you can click Refresh Access Token to test that the currently provided credentials are valid. When you click the button, Lasernet Developer attempts to use those credentials to obtain a new access token.

Application Authentication Properties

Tenant Domain	Enter the relevant tenant domain.
Client ID	The Entra ID admin must provide a client ID for the module to use for authentication.
Client Secret	The Entra ID admin must provide a client secret for the module to use for authentication.
Mailbox	Specify the mailbox to access (as a UserId, UserPrincipalName, or mail address)

Refresh Access Token

If Lasernet Core experiences issues connecting to Outlook Mail, there might be a problem with its current security tokens. In some cases, the Refresh Access Token button can resolve connection issues.

Connection issues can occur for a number of reasons, including:

More than 90 days of inactivity (user authentication).
The user changed their password (user authentication).
Permission or security changes to the user (user authentication).
Revocation of permissions (user authentication or application authentication).

If Lasernet Core experiences connection issues, try the following steps (depending on the authentication method used).

User Authentication

Click Refresh Access Token to obtain new tokens, then commit and deploy the Lasernet Core configuration.

If doing this does not resolve the issue, click Remove Authorization to remove the currently stored security tokens, then click Obtain Authorization to reauthenticate using the user account (which will also refresh the security tokens). Then, commit and deploy the Lasernet Core configuration.

Application Authentication

Click Refresh Access Token to obtain new tokens, then commit and deploy the Lasernet Core configuration.

Lasernet Core 11.2 and later

Application authentication for Outlook Mail communication requires that:

Lasernet Core is registered as an app by an Entra ID admin.
In Entra ID, the app has the Mail.ReadWrite permission.
The Entra ID admin must provide a ClientID and Client Secret for the module to use to sign in.

Important
Before implementing application authentication for this module, see Understand the Security Implications of Application Authentication for Outlook Mail, OneDrive, and SharePoint Modules.

Enter Client ID and Client secret (and complete any other necessary settings such as Tenant Domain and Mailbox), then click Refresh Access Token.

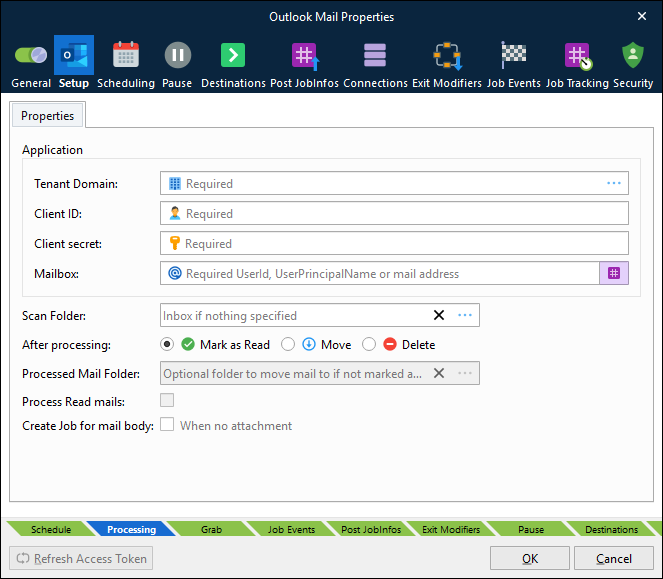

The Setup tab of an Outlook Mail input module.

Note
If the client ID and client secret change in the future, repeat the step above and then commit and deploy the Lasernet Core configuration. Doing this ensures that the module remains authenticated.
At any time, you can click Refresh Access Token to test that the currently provided credentials are valid. When you click the button, Lasernet Developer attempts to use those credentials to obtain a new access token.

Application Authentication Properties

Tenant Domain	Enter the relevant tenant domain.
Client ID	The Entra ID admin must provide a client ID for the module to use for authentication.
Client Secret	The Entra ID admin must provide a client secret for the module to use for authentication.
Mailbox	Specify the mailbox to access (as a UserId, UserPrincipalName, or email address)

Provide Values for Other Module Properties

Use the following information to complete the module configuration.

Scan Folder	Folder that emails are read from. If scanning a subfolder of the Inbox, the syntax is Inbox\Test
After processing	Specifies what happens to an email after this module processes it: Mark as Read in the scan folder. Move the email to the folder specified by Processed Mail Folder. Delete the email from the scan folder.
Processed Mail Folder	Specify the destination folder for emails that this module moves after processing.
Process Read Mails	Select to process incoming mails that are marked as read.
Create Job for mail body	Select to create a job from the email body, if no attachment is available.

JobInfos

When an email is received, a job is created for each attachment; the job’s JobData is the attachment. The following JobInfos are set:

InputAttachmentCount	Total number of attachments included in the incoming email.
InputAttachmentNumber	Handling attachment number for the incoming email.
InputBody	The body of the mail.
InputFilename	The filename of the attachment.
InputFromEmail	The email address of the sender.
InputFromName	The display name of the sender.
InputHeaderFieldName and InputHeaderFieldValue	A pair of JobInfo lists that contain the names and values of the custom mail headers received by this module. Each header’s name is an item in the InputHeaderFieldName JobInfo list. That header’s value is the corresponding item in the InputHeaderFieldValue list. For example, suppose that the email has an X-MS-Has-Attach header whose value is Yes. If InputHeaderFieldName[5] contains X-MS-Has-Attach, InputHeaderFieldValue[5] contains Yes.
InputMessageID	Unique identifier for the incoming mail.
InputMimeType	The mimetype of the attachment.
InputReplyTo	The “reply to” address of the sender for the incoming email.
InputSubject	The subject of the mail.
