Mail Input

Applies to: Lasernet Core 10

Used for picking up files from an email mailbox.

The following mail servers are supported:

Servers using the POP3 standard.
Services using Internet Message Access Protocol (IMAP).

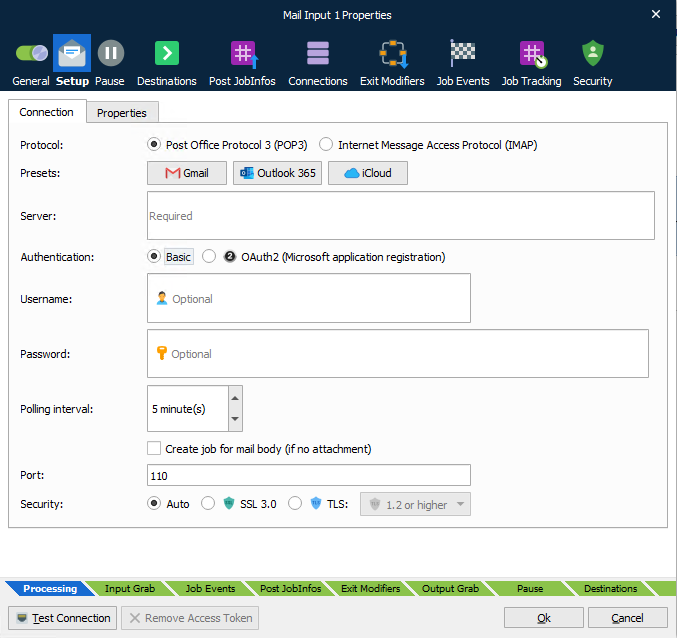

General

Protocol	POP3 and IMAP
Server Address	DNS name or IP address of POP3 server.
Authentication	Select Basic authentication or OAuth2 (Microsoft application registration) authentication.
Username	Username for mail account.
Password (Basic authentication only)	Password for mail account.
Tenant Domain (OAuth2 authentication only)	Tenant domain of the app registration.
Client ID (OAuth2 authentication only)	Client ID of the app registration.
Client secret (OAuth2 authentication only)	Client secret of the app registration.
Polling Interval	Sets how often Lasernet Core should look for new mail.
Create job for mail body	If selected, a job will be created for the mail body.
Port	Number of SSL port, if SSL is used.
Security	Selectable choices for security protocols are None, SSL 3.0 and TLS. Activate SSL port and set up the port number (default 465) to provide encrypted communication and secure identification. Configure the TLS protocol to use specifically version 1.0, 1.1, 1.2 or 1.3 of the protocol or configure it to negotiate with the server the use of a particular version or higher (for example, 1.2 or higher).

Properties

Scan Folder	Specifies the folder to look in for incoming mail. If left blank, the Inbox folder will be used.
Processed Mail Folder	Sends mail to this folder after handling it. If left blank, the mail will remain in the incoming mail folder, but will be marked as read.
Delete mail after processing it	If checked, will delete the mail after handled by Lasernet Core.

OAuth2 Configuration

To set up OAuth2 authentication, you must complete tasks in Microsoft Entra ID and Exchange in addition to configuring this Lasernet Core module.

Follow this overall process:

In Entra ID, create an application registration for Lasernet Core and then grant it the following permissions:
- For POP access: POP.AccessAsApp
- For IMAP access: IMAP.AccessAsApp
- For SMTP access: SMTP.SendAsApp
In Entra ID, get tenant admin consent for the Lasernet Core application registration to access Exchange mailboxes through POP, IMAP, or SMTP.
In Exchange, use the New-ServicePrincipal cmdlet to register the service principal.
- Note: This step must be completed by an Exchange administrator.
In Exchange, use the Add-MailboxPermission cmdlet to grant the application the necessary access to specific mailboxes.
- For example: Add-MailboxPermission -Identity "john.smith@example.com" -User 3f2504e0-4f89-11d3-9a0c-0305e82c3301 -AccessRights FullAccess

Note
The process above summarises the following Microsoft documentation. For full instructions and accompanying examples, go to https://learn.microsoft.com/en-us/exchange/client-developer/legacy-protocols/how-to-authenticate-an-imap-pop-smtp-application-by-using-oauth#use-client-credentials-grant-flow-to-authenticate-smtp-imap-and-pop-connections

JobInfos

When an email is received, a job is created for each single attachment – JobData is set to the contents of the attachment and the following JobInfos are set if available:

Extension	Extension of the file prefixed with a dot.
InputAttachmentCount	Total number of attachments included in the incoming email.
InputAttachmentNumber	Handling attachment number for the incoming email.
InputBody	The plain text content of the mail body if any.
InputBodyHTML	The HTML contents of the mail body if any.
InputFromName	The display name of the sender.
InputFromEmail	The email address of the sender.
InputHeaderFieldName and InputHeaderFieldValue		A pair of JobInfo lists that contain the names and values of the custom mail headers received by this module. Each header’s name is an item in InputHeaderFieldName. That header’s value is the corresponding item in InputHeaderFieldValue. For example, if InputHeaderFieldName[5] = X-Priority, the value of the X-Priority mail header (in this example, 3) is in InputHeaderFieldValue[5].
InputMimeType	The mimetype of the attachment.
InputFilename	The filename of the attachment.
InputLongFilename	The long filename of the attachment.
InputMessageID InputReplyTo	Unique identifier for the incoming mail. The ”reply to” address of the sender for the incoming email.
InputSubject	The subject of the mail.
InputToEmail	The email address of the receiver.
InputToName	The display name of the receiver.
